IR HiRel集成電路智能功率模塊 (IPM)
發布時間：2022-02-24 17:26:44 瀏覽：3974

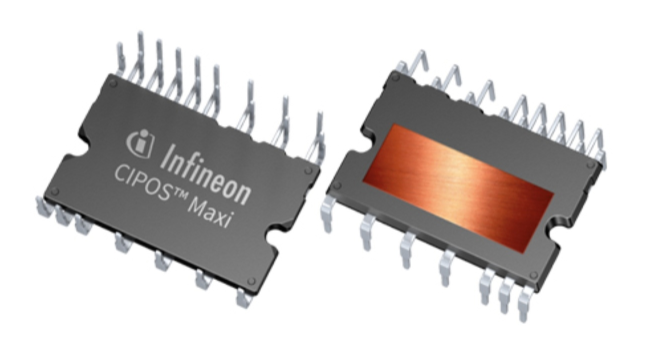

IR HiRel集成電路智能功率模塊(IPM)是款不同的封裝形式、電壓和電流層級的CIPOS?智能功率模塊。
IR HiRel提供各種IPM，使用不同的封裝形式的不同的半導體及其不同的的電壓和電流層級。這些IPM可分為緊湊型、標準型和高性能系列產品。部分IPM可分為 CIPOS?Nano, CIPOS?Micro, CIPOS?Tiny, CIPOS?Mini and CIPOS?Maxi 家庭。這些高能效智能功率模塊IGBT集成了全新的功率半導體和IC技術。
IR HiRel先進的 IGBT, MOSFET，新一代 柵極驅動器IC 智能功率模塊使用最先進的熱機械技術。IRHiRel集成電路智能功率模塊(IPM)通過提供更高的功率密度、提高的系統堅固性和安全可靠性來提高系統性能和能源效率。
深圳市立維創展科技有限公司，優勢渠道供貨IR HiRel高可靠性系列產品，歡迎各界前來咨詢。
詳情了解IR HiRel，請點擊：http : //www.qxjyj.com/public/brand/65.html
Product | Package | Product Group | Voltage Class [V] | Configuration | Switch Type | Pmot 10kHz [W] | Rated Current [A] |
IM818-LCC | DIP 36x23D | CIPOS? Maxi | 1200 | 3 Phase Open Emitter | IGBT | 3 | 15 |
IM818-MCC | DIP 36x23D | CIPOS? Maxi | 1200 | 3 Phase Open Emitter | IGBT | 2.2 | 10 |
IM818-SCC | DIP 36x23D | CIPOS? Maxi | 1200 | 3 Phase Open Emitter | IGBT | 1.4 | 5 |
IM828-XCC | DIP 36x23D | CIPOS? Maxi | 1200 | 3 Phase Open Emitter | CoolSiC? | 4.8 | 20 |
IFCM20T65GD | DIP 36x21D | CIPOS? Mini | 650 | 2 Phase Interleaved PFC | IGBT | 3600 | 20 |
IFCM20U65GD | DIP 36x21D | CIPOS? Mini | 650 | 3 Phase Interleaved PFC | IGBT | 4400 | 20 |
IFCM30T65GD | DIP 36x21D | CIPOS? Mini | 650 | 2 Phase Interleaved PFC | IGBT | 5400 | 30 |
IFCM30U65GD | DIP 36x21D | CIPOS? Mini | 650 | 3 Phase Interleaved PFC | IGBT | 6400 | 30 |
IFCM10P60GD | DIP 36x21D | CIPOS? Mini | 600 | PFC Integrated | IGBT | 1200 | 10 |
IFCM10S60GD | DIP 36x21D | CIPOS? Mini | 600 | PFC Integrated | IGBT | 1200 | 10 |
IFCM15P60GD | DIP 36x21D | CIPOS? Mini | 600 | PFC Integrated | IGBT | 1800 | 15 |
IFCM15S60GD | DIP 36x21D | CIPOS? Mini | 600 | PFC Integrated | IGBT | 1800 | 15 |
IGCM04F60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 600 | 4 |
IGCM04G60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Closed Emitter | IGBT | 600 | 4 |
IGCM06F60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 800 | 6 |
IGCM06G60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Closed Emitter | IGBT | 800 | 6 |
IGCM10F60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1000 | 10 |
IGCM15F60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1200 | 15 |
IGCM20F60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1600 | 20 |
IKCM10H60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1000 | 10 |
IKCM10L60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1200 | 10 |
IKCM15F60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1600 | 15 |
IKCM15H60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1200 | 15 |
IKCM15L60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1600 | 15 |
IKCM15L60GD | DIP 36x21D | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 2200 | 15 |
IKCM15R60GD | DIP 36x21D | CIPOS? Mini | 600 | 2 Phase Asymmetric Inverter | IGBT | 2200 | 15 |
IKCM20L60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 1800 | 20 |
IKCM20L60GD | DIP 36x21D | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 2400 | 20 |
IKCM20R60GD | DIP 36x21D | CIPOS? Mini | 600 | 2 Phase Asymmetric Inverter | IGBT | 2400 | 20 |
IKCM30F60GA | DIP 36x21 | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 2000 | 30 |
IKCM30F60GD | DIP 36x21D | CIPOS? Mini | 600 | 3 Phase Open Emitter | IGBT | 2600 | 30 |
